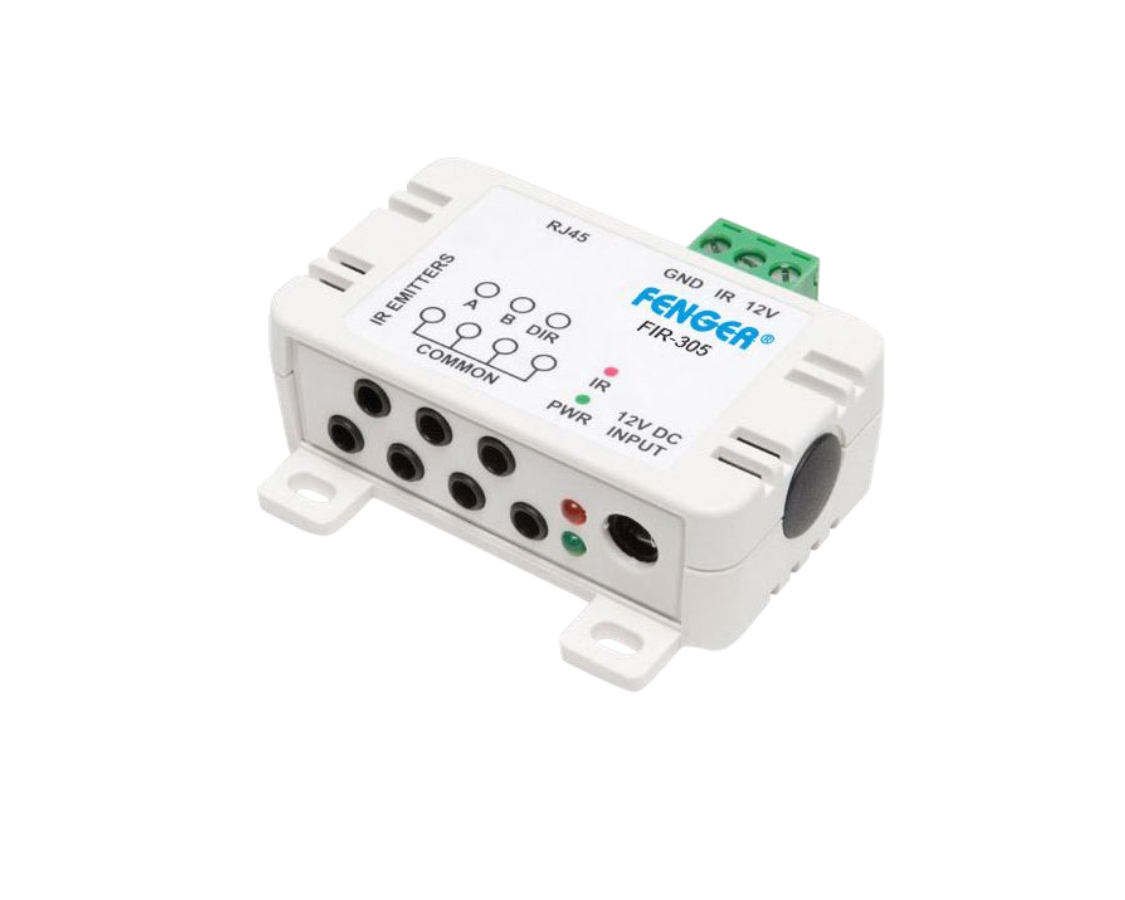

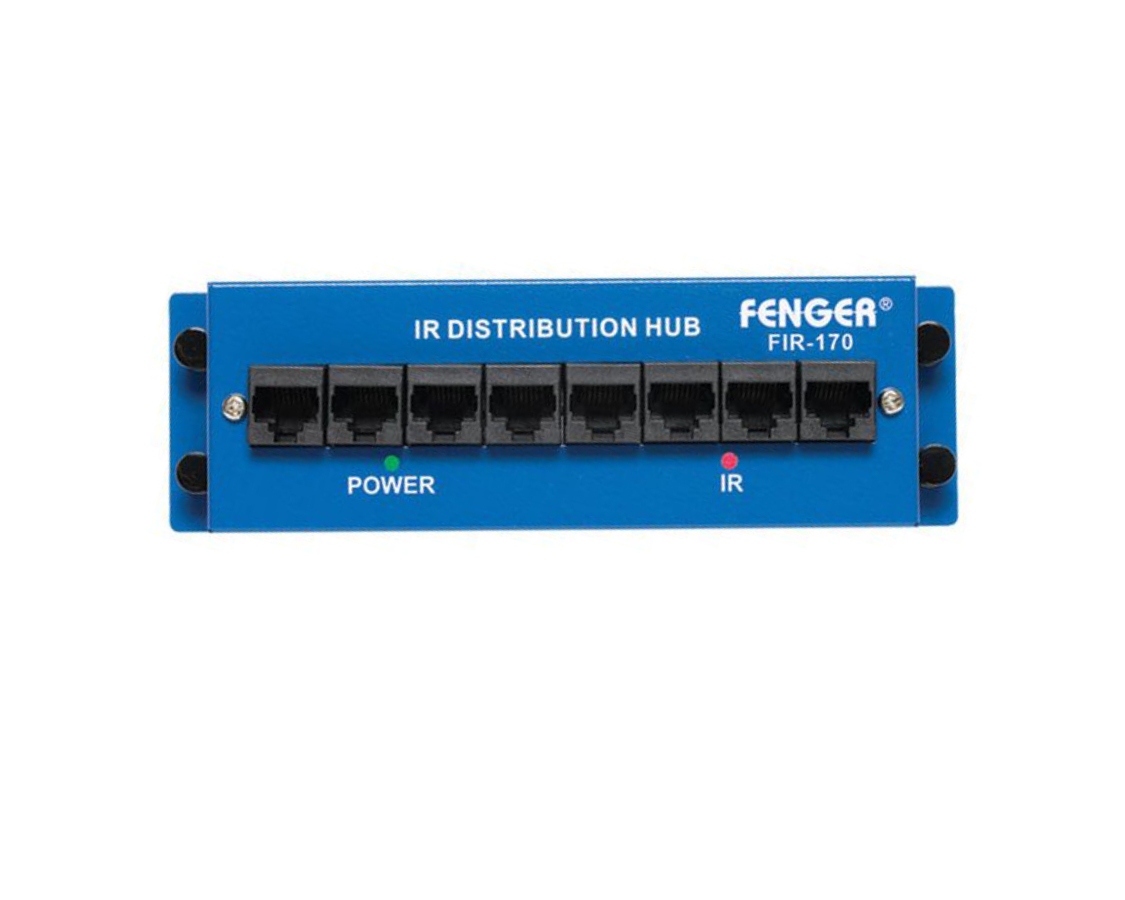

Fenger Proffesional IR Extender MultiRoom contains: 1 x FIR-305 (IR Distribution Module) 3 x FIR-505 (Receiver Module & Flat IR Target) for each room/zone 1 x FIR-170 (IR Distribution Hub) 2 x FIR-800 (Dual IR Emitter) for each source A/V   FIR-170 Fenger FIR-170 Infra Red Distribution Hub with 1 Input and 7 Outputs – Expandable Fenger FIR-170 Infra Red Distribution Hub with 1 Input and 7 Outputs – Expandable. The IR Distribution Hub (FIR-170) allows you to connect up to 7 Receiver Modules (FIR-505) to one Distribution Module (FIR-305) in a star configuration, for wired remote control from 7 rooms/zones, up to 60 meters away. The installation is easy to expand to more rooms/zones by adding a second IR Distribution Hub. IR Distribution Hub that allows IR signal distribution via star connection Small metal construction designed for easy wall or 9-inch rack mounting Can accommodate up to 8 separate terminal lines, which can be distributed to 7 different locations via RJ45 connectors Built-in LEDs for IR command and operating status recognition Technical Details Connections: 8 x IDC terminations, 8 x RJ45 sockets Data Performance Spec: CAT5e Max. Cable Length: up to 60 meters Max. Targets per System: Up to 7 targets Dimensions: 50 x 140 x 35 mm Mounting depth: 30 mm Fenger FIR-800 Double Head IR Emitter Cable The FIR-800 is a Double Head IR Emitter that retransmits the infrared signals of the remote control, received at an IR Target and sends them via the cable to the A/V equipment. It has an adhesive backing for easy placement in front of the infrared sensor of the audiovisual equipment For Discrete IR installations, use the IR Emitter Shield (FIR-160) Technical Details Connectors: 3.5 mm mini mono jack Cord Length: 1.75 meters Emitter Type: Blaster Emitter Strength: up to 200 mm away from IR receiver Head Size: 8 x 15 x 5 mm Fenger FIR-305 Infra Red Distribution Module with Discrete IR function The IR Distribution Module is the heart of the Discrete IR distribution system. It receives incoming IR signals via UTP cable and distributes them to the appropriate output port of the IR Emitter. The output ports for the IR Emitters are divided into Discrete A, Discrete B, Direct and Common for connection to A/V devices. Each IR Emitter output port corresponds to one device (e.g. Set-top box, DVD player, amplifier, etc.), unless you use a Double head IR Emitter, allowing you to double the A/V devices. Control specific A/V devices from each room/zone, ideal when two of the same A/V devices are installed in an area Seven output ports for IR Emitters (2 Discrete, 1 Direct and 4 Common), one terminal input for IR Target and one RJ45 socket for expansion Multiple zone distribution possible via loop wiring using the Receiver Module (FIR-505) or by star wiring via the IR Distribution Hub (FIR-170) Built-in LEDs for IR command and status recognition Technical Details: Frequency Range: 20 KHz ~ 200 KHz Power Input: 12 VDC – 500mA Cable Requirement: UTP cable (CAT 5e/6) Max. Cable Length: up to 60 meters Dimensions: 70 x 40 x 23 mm Power Supply Unit – Power Input: 110 ~ 240 VAC – Power Output: 12 VDC – 500 mA – Connection – Power Out: 1.8m length with F-2.1mm mini-jack   Fenger FIR-505 Receiver Module & Flat Infra Red Target Receiver Module and Flat IR Target for use in the Discrete IR distribution system. Each room/zone requires a Receiver Module (includes Flat IR Target). The Receiver Module (FIR-505) receives IR commands from remote controls and transmits the signals via the IR Distribution Module (FIR-305) to A/V devices. Receiver Module and Flat IR Target (FIR-505) for use in Discrete IR system in combination with IR Distribution Module (FIR-305) and Single IR Emitter (FIR-700) or Double IR Emitter (FIR-800) Control specific A/V devices from each room/zone, with DIP switch selection Flat IR Target rejects interference from Plasma screens, direct sunlight and fluorescent lamps for accurate infrared signal reception Enable IR control of local A/V devices by connecting FIR-700/800 directly to Receiver Module Easily expandable via RJ45 connection to Distribution Module (FIR-305) or via IR Distribution Hub (FIR-170) Built-in LEDs for IR command and status recognition Power supply via IR Distribution Module (FIR-305) Technical Details: Frequency Range: 20 KHz ~ 200 KHz Target Cable Length: 1.75 m Max. Target Reception Distance: up to 8 meters Discrete IR Control: via DIP switch Cable Requirement: UTP cable (CAT5e) Max. Cable Length: up to 60 meters Dimensions: 70 x 40 x 23 mm
